The Role of PCB Enclosures

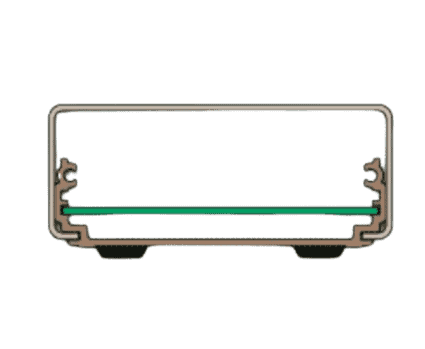

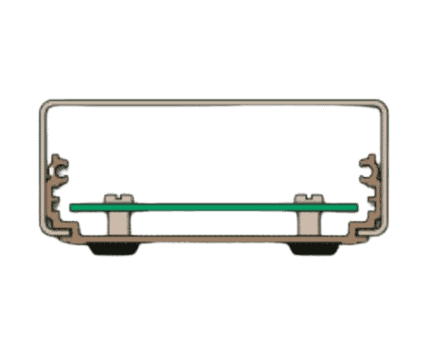

Lansing’s MicroPak C-, D-, and E-Style enclosures are purpose-built to house and protect printed circuit boards with precision and reliability. Each features multiple integrated tracks that allow PCBs to slide securely into place with no additional brackets or hardware required. If the integrated tracks don’t fit your design, they allow for custom located PCB standoffs for optimal flexibility.
The extruded aluminum body provides rigidity, EMI shielding, and thermal efficiency, while interchangeable covers and end panels simplify access and customization. From compact single-board assemblies to complex multi-board systems, Lansing’s PCB enclosures make it easy to integrate, protect, and service your electronics.

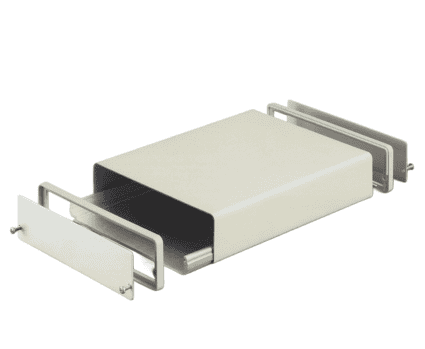

MicroPak C-Style
- Most economical and versatile design in the MicroPak family
- Constructed of a solid extruded aluminum base, a vinyl-clad aluminum or steel cover, and various customizable end-panel designs
- Ideal for small desktop and/or handheld applications
- Fully removable cover for ease of testing, installation, and maintenance

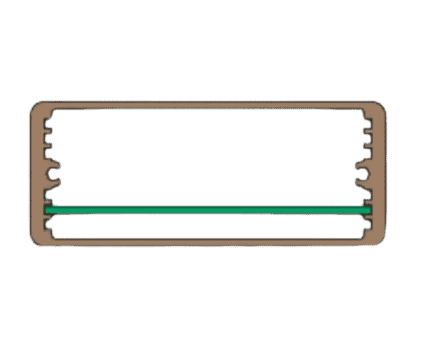

MicroPak D-Style
- Simplest and strongest design in the MicroPak family
- Constructed of a single one-piece seamless extruded body, with various customizable end-panel designs.
- Reinforced sidewalls for additional rigidity and shielding
- Accommodates larger components or multi-board configurations
- Optional mounting flanges for versatile placement
- Provides the widest range of finishing options

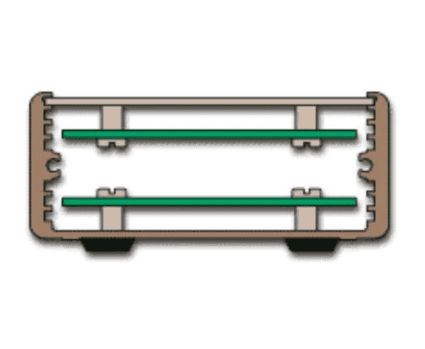

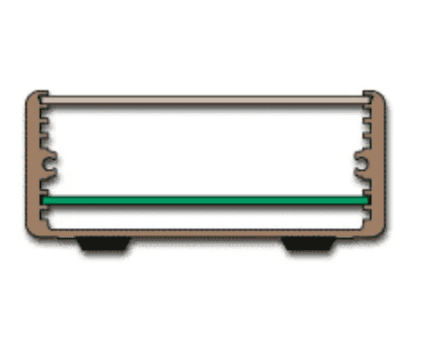

MicroPak E-Style
- Combines flexibility with rigidity
- Constructed of an extruded aluminum base/sidewalls, a slide-in top panel, and various customizable end-panel designs
- Recessed & removable top panel for simple control panel interface designs
- Offers the most PCB mounting options of the MicroPak family
- Optional mounting flanges for versatile placement
Compare GrayBox and MicroPak Family Enclosures with Our Quick Reference Guides. Gain Direct Access.
From cover and end panels, to shielding and finishes, each PCB enclosure can be configured for your application. Configurations include:
- Panels and Cutouts
- Covers
- Venting
- Screws, PEMs, Standoffs
- And more
For more specific customizations such as branding or special sizing, Lansing also offers tailoring services to design an enclosure matched to your workspace or brand.
