E-Style MicroPak Enclosures

Extruded Aluminum Enclosure with a Large Panel Area

Product Features

Ideal for Small Desktop and/or Handheld Instruments Requiring a Large Control Panel Area
Quality, Rugged Extruded Aluminum Enclosure
Proven, Flexible Designs, Clean Styling
Enhanced Versatility and Configurability
Fast and Efficient to Assemble
Shielding characteristics suitable for most applications

Product Overview: E-Style MicroPak Extruded Aluminum Enclosure

The E-Style MicroPak extruded aluminum enclosure uses an optimized design for maximum control. Distinguishing details include its rugged body construction, extruded base, and flat slide-in top panel.

The MicroPak E-Style is available in 6 standard sizes with various height and width combinations and one or more standard lengths (front to back) within each size. Lengths beyond the standard options available are made to order.

E-Style MicroPak Extruded Aluminum Enclosures offer a variety of configurations. Each end of an E-Style enclosure can be fitted with an end panel/bezel combination as a panel enclosure (most versatile and available on all sizes), a solid end cap (molded in durable polycarbonate), or a battery compartment (9-volt battery housing with convenient sliding access cover). Top panels are available in two thicknesses and a variety of finishes to obtain the appearance you desire. Bottom details include non-skid feet for desktop applications and a recessed area suitable for labels.

Technical Data Sheet

Product Specifications

Product Details

Stock	Available in 6 Standard Sizes
Dimensions	Multiple Size Options Available
Lengths	One or More Standard Lengths (Front to Back) within Each Size
Heights & Widths	Multiple Options Available (See Dimensions)
Technical Data	Download Drawings and Dimensions

Additional Options

Shielding	Optional Enhancements Available
End Options	End Panel/Bezel Panel Enclosure, Solid End Cap, Battery Compartment
Top Panel	Two Thicknesses; Holes, Inserts, or Silk Screening Easily Added
Bottom	Non-Skid Feet, Recessed Area
Screws	Phillips Pan or Phillips Flathead (Silver/Black)
Mounting	Multiple Tracks for Mounting Printed Circuit Boards

Materials and Finishes

Chassis	High-quality Extruded Aluminum
Covers	Aluminum, Vinyl-Clad Aluminum, or Steel
End-cap	Aluminum, Polycarbonate
Finishes/Colors	Warm and Cool Palette (15 colors available)

General Details

Made In	Ithaca, NY, United States
Manufacturer	Lansing Instrument Corp
Safety Ratings	IP67 Enclosure; Customization Available to Meet NEMA or Weather Ratings
Applications	Heavy-duty outdoor installations

Options

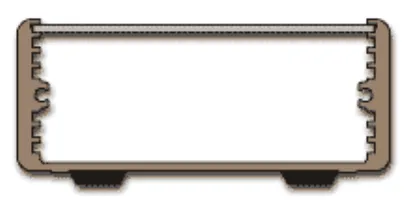

E Style Base & Cover

E Style MicroPak Enclosures are characterized by a tubular body consisting of a rugged extruded base with a slide-in flat…

E Style End Configuration

Each end of an E Style MicroPak enclosure can be fitted with an end panel/bezel combination, a solid end cap,…

E Style PCB Mounting

Each E Style MicroPak Enclosure has multiple sets of tracks for mounting printed circuit boards. These tracks provide an efficient…

Accessories

Rack Mount Panels for MicroPak Enclosures

Overview All MicroPak Enclosures can be mounted in a standard 19-inch rack using a MicroPak Rack Mount Panel. This option adds…

Content specs that make an E-Style MicroPak Enclosure different from a C or D:

Feature/Style	MicroPak C-Style	MicroPak D-Style	MicroPak E-Style
End Configurations	End panel/bezel combination, solid end, battery compartment	End panel/bezel combination, solid end, extended metal panel, battery compartment	End panel/bezel combination, solid end, battery compartment
Mounting Options	PCB Mounting, Surface mountable	PCB Mounting, Surface and panel mountable	PCB Mounting, Surface and pole mountable
Applications	Compact indoor and light outdoor use	Versatile indoor/outdoor use	Heavy-duty outdoor installations
Ingress Protection	IP54	IP65	IP67
Configurability Options	Available	Available	Available

Find Your Ideal Enclosure

Contact us today to place an order or discuss your electronic enclosure requirements. Experience dedicated service and bespoke solutions tailored just for you.
