High-performance electronics used in power delivery and timing systems operate in demanding environments where electromagnetic compatibility margins are increasingly constrained. As switching frequencies rise and system architectures become denser, EMI performance becomes increasingly dependent on enclosure design for maintaining signal integrity, timing stability, and power system reliability.
A well-engineered EMI shielded enclosure is a defining factor in how well the system manages electromagnetic conditions. It governs how noise is contained, how external fields are rejected, and how effectively power and timing domains are isolated from one another.
Enclosure Design as an EMI Control Point
In power and timing architectures, EMI is a system-level interaction problem governed by enclosure behavior.
Internally generated electromagnetic energy must be contained within defined regions of the system, while externally generated RF energy must be prevented from entering. The enclosure determines the effectiveness of both functions by establishing the physical and electrical boundaries of the system. When those boundaries are incomplete or inconsistent, electromagnetic coupling becomes a system-wide constraint that impacts timing stability, signal integrity, and overall reliability.
This makes enclosure design a primary mechanism for EMI control, not a secondary packaging consideration.
System-Level Isolation of Power and Timing Domains
Power electronics and timing systems must often coexist within the same electronic enclosure, despite having fundamentally different sensitivities to electromagnetic noise.
Power subsystems introduce high-energy switching behavior that creates broad electromagnetic activity across the system. Timing subsystems require highly stable, low-noise environments where even small disturbances can affect synchronization and phase stability.
Without deliberate enclosure-level separation, these domains interact through shared system space, creating unstable electromagnetic conditions. Effective enclosure design addresses this through:
- Dedicated internal compartments for power and timing functions
- Electromagnetic isolation between system regions
- Controlled internal geometry that prevents cross-domain coupling
This separation is not achieved through individual component strategies, but through enclosure architecture that enforces distinct electromagnetic zones within a shared system boundary.
Seam Integrity and Grounding as Determinants of Shielding Performance
The effectiveness of an EMI shielded enclosure is defined less by its bulk material and more by the continuity of its conductive structure.
Seams, joints, and interfaces represent the most critical points of vulnerability in any enclosure design. Any discontinuity in the conductive boundary creates pathways for electromagnetic leakage or coupling, particularly in high-frequency environments.
As a result, shielding performance is determined by:
- Continuous conductive contact across enclosure surfaces
- Stable electrical bonding across all mechanical interfaces
- Controlled grounding paths that maintain a consistent system reference
- Properly managed transitions at enclosure boundaries and access points
In high-performance systems, these mechanical factors define the real-world effectiveness of EMI shielding.

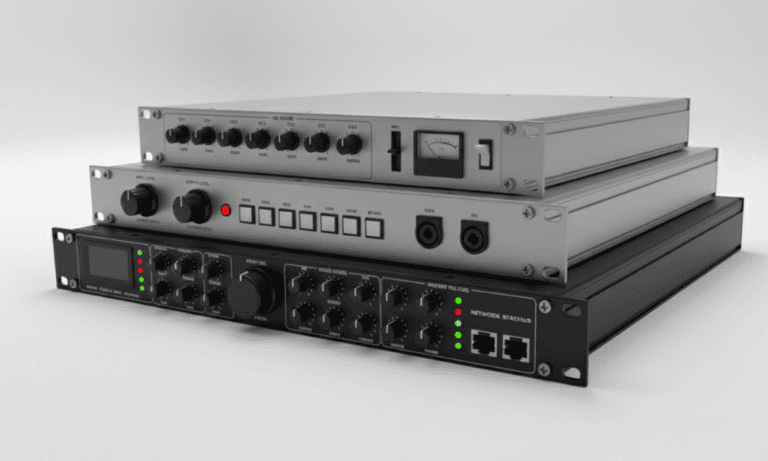

Aluminum as a Foundational Shielding Material
Aluminum is widely used in EMI shielding enclosures due to its ability to provide consistent, high-conductivity performance across complex geometries.
Its value comes from its predictability as a shielding medium:
- High electrical conductivity supports effective attenuation of electromagnetic energy
- Uniform surface behavior reduces variability in shielding performance
- Structural compatibility enables tight-tolerance enclosure interfaces
- Supports stable, continuous conductive bonding across system boundaries
When properly grounded and mechanically integrated, aluminum provides a stable electromagnetic enclosure boundary that supports consistent system-level shielding behavior.
Thermal Management Within EMI Constraints
Thermal management is a necessary function in high-performance electronics, but it must be implemented without compromising the electromagnetic boundary defined by the enclosure.
Any interruption in enclosure continuity introduces potential pathways for electromagnetic energy exchange. This makes airflow management a critical design constraint in EMI-sensitive systems. The challenge is not simply removing heat but maintaining enclosure integrity while doing so.
Integrated Enclosure Architecture for System Stability
The most effective EMI shielding strategies treat thermal and EMI performance as interconnected enclosure-level requirements.
Rather than addressing these challenges independently, enclosure architecture is designed to support both simultaneously by:
- Structuring internal regions to separate thermal and electromagnetic demands
- Preserving enclosure continuity across all functional zones
- Maintaining consistent shielding behavior across dynamic operating conditions
This integrated approach is especially important in compact or high-density systems where enclosure constraints directly influence both thermal and EMI performance.
Building Stability Through Advanced Enclosure Design
Managing EMI in high-performance electronics requires a deliberate and integrated approach to enclosure design. By prioritizing the physical and electromagnetic separation of power and timing systems and carefully balancing EMI shielding with thermal management, engineers can significantly reduce noise coupling and maintain system stability.
Although materials such as aluminum provide a strong foundation for attenuation, real-world effectiveness is ultimately determined by enclosure architecture. A properly engineered EMI shielded enclosure does more than contain electronics; it defines the electromagnetic boundary conditions that enable stable, predictable system behavior.
Organizations looking to improve EMI and RFI shielding performance should evaluate enclosure solutions that address both electromagnetic isolation and thermal management at the system level from the outset. Lansing’s shielded enclosures provide a quality, configurable solution. Shop now or connect with the technical team to discuss application-specific requirements for high-performance electronics.
Investing in the right enclosure strategy ensures consistent operation, improved signal integrity, and long-term system reliability in demanding environments.
